Raised motocross front fender installed!

I got tired of waiting for the ProTek 48mm fork tube clamps i had in mind for mounting my Acerbis motocross front fender - so I made it work using 2 large hose clamps and a piece of aluminum flat stock about 7 inches long and 2.5" wide and 1/8" thick (it passes through the fender held by two small bolts and small slits i cut in the left and right side of the middle of the fender. Then i dremmeled 4 slits in the aluminum piece so that the hose clamp could pass through on each side and around the lower triple clamp - solid as a rock and looks great also i think Will use the fork tube clamps when they arrive next week to mount driving lights (better use)

The bike is also fully packed for a 4 day tour and camping trip in the California Sequoia National Forest. I am using a Giant Loop Great Basin bag that is completely water proof and hold 51liters of stuff - not to mention it sits down and rides great as far as weight distribution is concerned

Also got my owner manual canisters mounted off my passenger rails that will hold a 30oz MSR fuel bottle each (about 1/2 gallon total) being that gas stations will be rare in the area we are going (just in case)

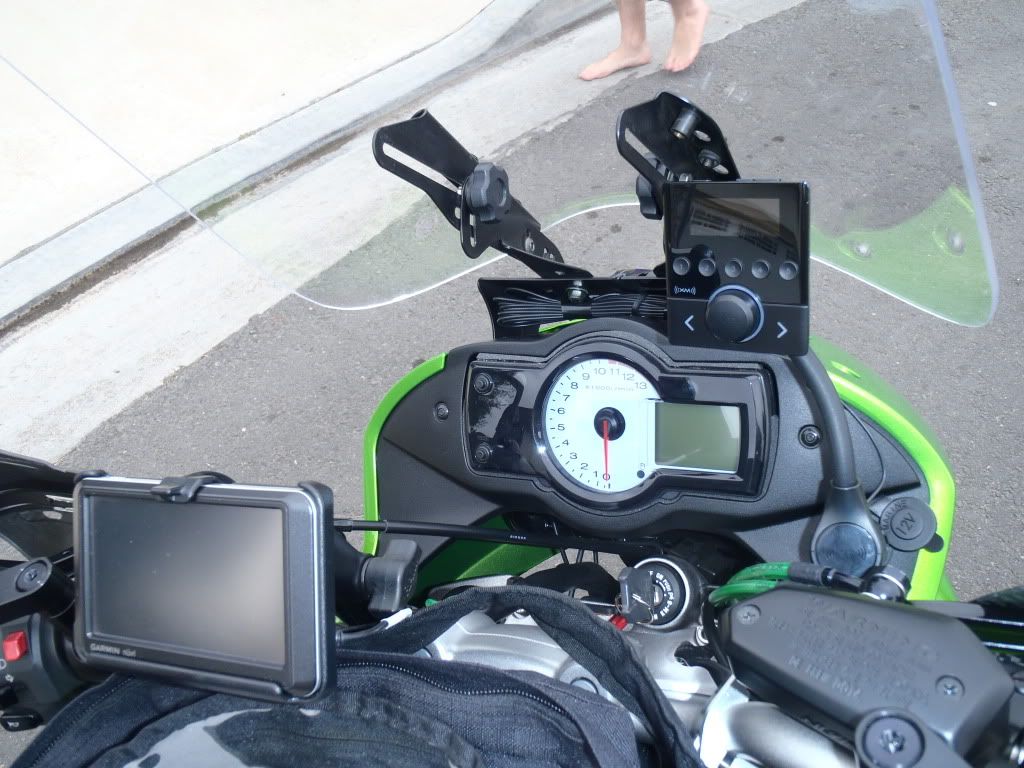

Got GPS mounted, XM Radio (in the power socket) with the antenna just under the front of the windscreen. Yes, I have a green 520 O-ring chain on the bike (got carried away with personalizing it) lol but i do have the 44 tooth rear sprocket installed and really love the difference!

Got the lower SST fork guards from camaroz1985 and made a bracket out of flat steel stock since the holes do not line up to make those work and painted them black (they were white)

The only chore left to do is decide where to mount my Contour HD video cam for the trip...









Here are more detailed photos of the job so you can get a better idea of how i did this and the fender used was an Acerbis Universal Supermoto Front Fender which worked out excellent since the back portion of the fender that sits up next to the lower triple clamp is actually shaped like the V at the back of the lower triple clamp!!! The rear of the fender has slats for added ventilation to the radiator and clears the radiator by 1/2"

http://www.motorcycle-superstore.com...wt.ac=SLI_SERP

This is a view from underneath the fender showing the aluminum flat stock and how it is bolted to the fender and how it sticks through the fender on the left and right sides



This view is facing the bike on the right side of the fender looking at how the hose clamp passes around the triple clamp and through the slits in the flat aluminum stock



This view is looking at the backside of the lower triple clamp and how the hose clamp comes around the top and through the slit in the flat aluminum stock on the backside of it


------------------------------------------------------


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.


2009 Kawasaki Versys 650 Green
2007 Toyota FJ Cruiser Limited Edition
2002 Honda S2000


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.

Last edited by versysbill; 06-19-2011 at 11:17 PM.
versysbill is offline
Sponsored Links
Advertisement

post #2 of 22 (permalink) Old 06-19-2011, 09:58 PM
Member

ATYC's Avatar

Join Date: Sep 2010
Location: London, ON, Canada
Posts: 1,346
Mentioned: 0 Post(s)
Garage
Very Cool! Your bike looks like its ready for the Zombie Apocolypse! I like the brake lines and chain. I just did a 5 day trip with a similar luggage set-up: 26L Givi top case and a 52L Gears tail bag on the pillion. Worked great.

What rack are you using for the top case and how do you have the owner manual tubes attached to the rack? I really like that, can you show/explain more?

Always trust your cape.
ATYC is offline
post #3 of 22 (permalink) Old 06-19-2011, 10:21 PM Thread Starter
Member

versysbill's Avatar

Join Date: Mar 2011
Location: Santa Ana, CA
Posts: 97
Mentioned: 0 Post(s)
Send a message via AIM to versysbill Send a message via Yahoo to versysbill
It is the tail rack for the Shad top case - and all i did was just drill 2 5/16" holes through the hand rails that matched up with the 1 rear hole on the canister and the middle front hole on the canister and used 5/16" bolt with ny-lock nut from Home Depot - very solid

In the last picture you can see the nut/bolt combo in silver through the hand rail and the flat top mounting bracket of the cannister

------------------------------------------------------


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.


2009 Kawasaki Versys 650 Green
2007 Toyota FJ Cruiser Limited Edition
2002 Honda S2000


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
versysbill is offline

post #4 of 22 (permalink) Old 06-19-2011, 10:49 PM
Member

Join Date: Sep 2009
Location: Houston, tx
Posts: 623
Mentioned: 0 Post(s)
Can you show a more detailed pic of your xm radio setup?
rumbo75 is offline
post #5 of 22 (permalink) Old 06-19-2011, 11:03 PM Thread Starter
Member

versysbill's Avatar

Join Date: Mar 2011
Location: Santa Ana, CA
Posts: 97
Mentioned: 0 Post(s)
Send a message via AIM to versysbill Send a message via Yahoo to versysbill
It is the XM Snap Radio and it is plugged into my 12V Marine Outlet mounted on my right side dash. The antenna line is coiled up under the wind shield mount and the antenna end is on the outside of the MadStadd flat cross bracket so it has clear view up to the sky - Then i run my ear plug line from it (there is a jack on the base of the Snap radio) to myself. The 5 presets and big knob and left and right buttons make easy use with gloves on - It can also tune and broadcast to unused FM stations so you can use it in your car as well! It travels with me in my FJ Cruiser and my Honda S2000 - I even got an power outlet to AC adapter so i can run it in my house and patch through the line-in on my stereo

http://www.bestbuy.com/site/XM+-+Sna...&skuId=1166993


------------------------------------------------------


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.


2009 Kawasaki Versys 650 Green
2007 Toyota FJ Cruiser Limited Edition
2002 Honda S2000


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.

Last edited by versysbill; 06-19-2011 at 11:06 PM.
versysbill is offline
post #6 of 22 (permalink) Old 06-19-2011, 11:14 PM
Member

Join Date: Sep 2009
Location: Houston, tx
Posts: 623
Mentioned: 0 Post(s)
Thanks versysbill. I want to put either my sirius radio or my phone on my bike but I'm not sure how Im going to attach it.
rumbo75 is offline
post #7 of 22 (permalink) Old 06-19-2011, 11:22 PM Thread Starter
Member

versysbill's Avatar

Join Date: Mar 2011
Location: Santa Ana, CA
Posts: 97
Mentioned: 0 Post(s)
Send a message via AIM to versysbill Send a message via Yahoo to versysbill
You cant beat RAM Mounts (http://ram-mount.com) for mounting most any device to your bike as most anyone on this forum will attest to. I use one for my GPS but they do have a universal Cradle Holder that should work with most any phone...

http://www.ram-mount.com/CatalogResu...5/Default.aspx

------------------------------------------------------


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.


2009 Kawasaki Versys 650 Green
2007 Toyota FJ Cruiser Limited Edition
2002 Honda S2000


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
versysbill is offline
post #8 of 22 (permalink) Old 06-20-2011, 01:00 AM
Member

duffyduck1's Avatar

Join Date: Oct 2008
Location: Agrigento, Italy
Posts: 267
Mentioned: 0 Post(s)
Wow!
Congratulations. You made the new Kawasaki Versys Extreme (Adventure isn't enough).

Nobody thinks that something is so easy like who is totally unable to do it.

Kawasaki Versys 07 Orange
Ex Aprilia Pegaso 96 Blue
Ex Suzuki DR 350 91

To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
duffyduck1 is offline
post #9 of 22 (permalink) Old 06-20-2011, 07:46 AM
Member

Join Date: Aug 2010
Location: Lincoln,Nebraska
Posts: 46
Mentioned: 0 Post(s)
Looks good! What tires are you running, have you put many miles on them? Looking to changeout so I can get down dirt roads a little easier.
settersonly is offline
post #10 of 22 (permalink) Old 06-20-2011, 08:02 AM
Member

eeore39648's Avatar

Join Date: May 2011
Location: McComb, MS
Posts: 98
Mentioned: 0 Post(s)
Neat!
A little to "home made", though!
eeore39648 is offline
post #11 of 22 (permalink) Old 06-20-2011, 11:47 AM
Member

CJBROWN's Avatar

Join Date: Dec 2009
Location: OC, So-Cal
Posts: 1,063
Mentioned: 0 Post(s)
Lookin' good Bill!

Chris Brown
In SoCal
2009 V - custom black-on-black - SOLD
CJBROWN is offline
post #12 of 22 (permalink) Old 06-20-2011, 03:20 PM
Member

KnoxvegasMike's Avatar

Join Date: Jul 2010
Location: Knoxville, TN
Posts: 228
Mentioned: 0 Post(s)
Thanks Bill...
Now I have yet another "must do project" for the bike...
My wife hates you guys...

By the way, very nice.

2003 BMW R1100S Boxer Cup Prep (sold)
2004 Suzuki SV650 (sold, wish I hadn't)
2009 Kawasaki Versys (commuter/dragon slayer)
Future bike: Ducati Sport 1000S (just because
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
)
KnoxvegasMike is offline
post #13 of 22 (permalink) Old 06-20-2011, 05:05 PM Thread Starter
Member

versysbill's Avatar

Join Date: Mar 2011
Location: Santa Ana, CA
Posts: 97
Mentioned: 0 Post(s)
Send a message via AIM to versysbill Send a message via Yahoo to versysbill
for 'settersonly' - The tires are the Pirelli MT60 R and i only have enough miles on them to wear out most of the 'chicken strips' but they feel GREAT compared to stock as many would suspect or tell you - I will know more about them with regards to fire roads - gravel etc after my 4 day tour/camping tirp this weekend on the bike

------------------------------------------------------


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.


2009 Kawasaki Versys 650 Green
2007 Toyota FJ Cruiser Limited Edition
2002 Honda S2000


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
versysbill is offline
post #14 of 22 (permalink) Old 06-20-2011, 05:07 PM Thread Starter
Member

versysbill's Avatar

Join Date: Mar 2011
Location: Santa Ana, CA
Posts: 97
Mentioned: 0 Post(s)
Send a message via AIM to versysbill Send a message via Yahoo to versysbill
For 'eeore39648' - It may feel or look homemade (cant see the bits though unless you look up inside and close) but it holds as solid as anything could be since I have no equipment or skills to fabricate stuff like Speedy does Because I figured out another way to mount it, i can use my 48mm fork clamps to mount my driving lights now

------------------------------------------------------


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.


2009 Kawasaki Versys 650 Green
2007 Toyota FJ Cruiser Limited Edition
2002 Honda S2000


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
versysbill is offline
post #15 of 22 (permalink) Old 06-21-2011, 03:16 PM
Member

camaroz1985's Avatar

Join Date: Feb 2009
Location: Bressler, PA
Posts: 458
Mentioned: 0 Post(s)
Looks good. Glad to see you made the fork guards work. They look good.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
camaroz1985 is offline
post #16 of 22 (permalink) Old 06-21-2011, 03:24 PM
Member

weljo2001's Avatar

Join Date: Jan 2010
Location: Norwalk CA
Posts: 15,625
Mentioned: 6 Post(s)
Garage

2009 Blue Versys.
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
Sold
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.

My Farkles...
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
...
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.

My Video Channel
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.

My Photos...
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.


I'm not a Gynecologist. "But I'll Take A Look"

Everyone has a plan 'till they get punched in the mouth...
Mike Tyson

"Ya'll can go to hell, I'm goin' to Texas!"...Davey Crockett
weljo2001 is online now
post #17 of 22 (permalink) Old 06-21-2011, 05:40 PM
Member

blackberry's Avatar

Join Date: Apr 2010
Location: out behind the shed
Posts: 169
Mentioned: 0 Post(s)
I like it but I would be curious to find out how that fender works in the rain, gravel, or mud?
Not that the stock fender does much...
blackberry is offline
post #18 of 22 (permalink) Old 06-21-2011, 09:57 PM Thread Starter
Member

versysbill's Avatar

Join Date: Mar 2011
Location: Santa Ana, CA
Posts: 97
Mentioned: 0 Post(s)
Send a message via AIM to versysbill Send a message via Yahoo to versysbill
Well with so much more clearance I am sure it would do fine in the mud where the stock fender would easily get all gummed up in that small space

------------------------------------------------------


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.


2009 Kawasaki Versys 650 Green
2007 Toyota FJ Cruiser Limited Edition
2002 Honda S2000


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
versysbill is offline
post #19 of 22 (permalink) Old 06-22-2011, 06:49 AM
Member

WannaRideVersys's Avatar

Join Date: Aug 2010
Location: Wichita, KS
Posts: 102
Mentioned: 0 Post(s)
Lookin' good!

'09 Greener
Ride on. Ride hard. Respect the bike.
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
WannaRideVersys is offline
post #20 of 22 (permalink) Old 06-23-2011, 05:45 PM
Member

RockyMoto's Avatar

Join Date: Jul 2010
Location: So. Cal.
Posts: 521
Mentioned: 0 Post(s)
Looks great Bill!

Too bad they don't make black hose clamps; then your mounting system would be nearly invisible. I would be a little concerned with the front tire throwing back rocks and dirt/gunk on the radiator and headers/front of the engine. I've ridden mine (stock front fender, no fenda extenda) in water/muck a few times and the front of my engine and headers were covered in muck and I had a two inch wide strip of muck down the center of my radiator. I know you have a radiator guard mounted and I've got a feeling a skid plate/engine guard are probably in the works!

Have a safe and fun trip. There is some beautiful country up that way with great roads. Should be perfect weather too. Enjoy!

Ride to live, live to ride.
2009 Kawasaki Versys
2010 Yamaha YZ 250F
2008 Honda CRF 450
2006 Honda CR 250R
I've owned a Maico.
RockyMoto is offline
Sponsored Links
Advertisement

Reply

Quick Reply
Message:
Options

Register Now



In order to be able to post messages on the Kawasaki Versys Forum forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.

User Name:
Password
Please enter a password for your user account. Note that passwords are case-sensitive.

Password:


Confirm Password:
Email Address
Please enter a valid email address for yourself.

Email Address:
OR

Log-in










Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page
Display Modes
Linear Mode Linear Mode



Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On


For the best viewing experience please update your browser to Google Chrome
