"city light" continually burns out

The "city light", what the auxiliary driving light on the front above the headlight on 2010 to 2014 models is called in the manual, continually burns out on my bike. I've gone through 3 bulbs in the space of 2 months. Any ideas?
twowheels is offline
Sponsored Links
Advertisement

post #2 of 13 (permalink) Old 08-12-2015, 11:05 PM
Super Moderator

Fastoman's Avatar

Join Date: Sep 2009
Location: Ipoh.Perak.Malaysia
Posts: 6,864
Mentioned: 6 Post(s)
in proper connections & check your grounding.
Fastoman is online now
post #3 of 13 (permalink) Old 08-12-2015, 11:10 PM
Member

Join Date: Sep 2008
Location: Poughkeepsie NY
Posts: 1,164
Mentioned: 0 Post(s)
Garage
I used to have to replace my license plate light every year to pass inspection. No idea how long it would last, but I always failed the inspection. I finally bought a LED replacement, and have been good for 4 or 5 years now.

08' Versys
Givi racks with V35 sides, and V46 Top-case, Garmin Zumo 450 GPS, Powermadd Handguards, Motowerks GPS Mount, Peg Lowering kit, Flat Foot, Arrow Exhaust, Adjustable Levers, GIPro Gear Indicator, Oxford Heated Grips
HAWKSHOT99 is offline

post #4 of 13 (permalink) Old 08-12-2015, 11:15 PM
Member

MaverickAus's Avatar

Join Date: Feb 2009
Location: Coffs Harbour, NSW, Australia
Posts: 2,039
Mentioned: 0 Post(s)
Garage
I fitted LED's to my city light and licence plate light and they have lasted 3 years so far, but that doesn't solve the OP's problem. As Fastoman said check connections and grounds that is the most likely cause, might not hurt to check the fuse connections and the fuse itself. You are looking for loose connections and / or corrosion of any sort.
MaverickAus is offline
post #5 of 13 (permalink) Old 08-13-2015, 12:21 AM
Member

invader's Avatar

Join Date: Mar 2008
Location: Kapuskasing Ontario Canada
Posts: 7,832
Mentioned: 2 Post(s)
Which brand and quality level of bulbs are you getting? Did you leave fingerprints on the bulb's glass?

Here are some LED's:

http://www.ebay.ca/itm/2pcs-168-194-...87ee13&vxp=mtr

http://www.ebay.ca/itm/20-Pcs-Xenon-...a63666&vxp=mtr
invader is offline
post #6 of 13 (permalink) Old 08-13-2015, 10:17 PM Thread Starter
Member

twowheels's Avatar

Join Date: Jul 2009
Location: Ottawa, ON
Posts: 3,345
Mentioned: 4 Post(s)
Garage
When I got my 2010 with 9000km the stock incandescent bulb was burnt out. I replaced it with a multi LED bulb which burnt out it a week. It looked like the base around the LED's melted a little. This was replaced by a CREE single LED which again burnt out in about 2 weeks. I'm thinking there is insufficient cooling in the small cavity for this bulb and as a result I perhaps need a low intensity, cool running, LED or low wattage incandescent bulb. LEDs seem to be very intolerant of heat.

This is what I got to replace it with..... http://www.ebay.ca/itm/200806939262

Last edited by twowheels; 08-13-2015 at 10:24 PM.
twowheels is offline
post #7 of 13 (permalink) Old 08-13-2015, 11:00 PM
Member

MaverickAus's Avatar

Join Date: Feb 2009
Location: Coffs Harbour, NSW, Australia
Posts: 2,039
Mentioned: 0 Post(s)
Garage

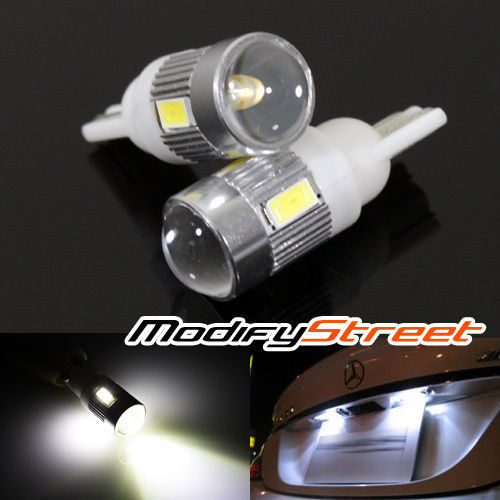

This is the type of LED I used

MaverickAus is offline
post #8 of 13 (permalink) Old 08-14-2015, 04:55 AM
Member

twowheeladdict's Avatar

Join Date: May 2010
Posts: 4,256
Mentioned: 5 Post(s)
Garage
I'm just glad I don't live in a city.

My Versys Travels:


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
twowheeladdict is offline
post #9 of 13 (permalink) Old 08-14-2015, 06:11 AM
Member

saddlebag's Avatar

Join Date: Dec 2014
Location: Eutopia
Posts: 1,883
Mentioned: 3 Post(s)
Quote:
Originally Posted by twowheeladdict View Post
I'm just glad I don't live in a city.
Exactly. I've never looked at mine. Don't suppose I'll ever know if it did/has burned out.
saddlebag is offline
post #10 of 13 (permalink) Old 08-14-2015, 02:59 PM
Member

genehil's Avatar

Join Date: Oct 2011
Location: Mount Dora, FL
Posts: 1,251
Mentioned: 0 Post(s)
Quote:
Originally Posted by saddlebag View Post
Exactly. I've never looked at mine. Don't suppose I'll ever know if it did/has burned out.
+1

GeneHil - Mount Dora, FL
2011 Kawasaki Versys
Viet Nam: Dec67-Dec68 & Jul69-Dec72
genehil is offline
post #11 of 13 (permalink) Old 08-14-2015, 07:37 PM
Super Moderator

Join Date: Dec 2013
Location: Sydney Australia
Posts: 1,458
Mentioned: 3 Post(s)
Garage
I got a multi LED bulb for my city light.

It uses 5 x Rounded Optics 3mm LEDs similar to these here:
https://www.superbrightleds.com/more...rofit-car/199/


rather than using the unprotected SMD style LED.

Also note, that cheap Chinese LEDs are cheap and can fail at any time.
I bought a whole heap of cheap $0.85c LEDs from Hong Kong about 8 years ago, 3 died in 10 minutes use. I have 2 more die after about 6 months. I noticed that the 3 that died within 10 minutes got very very hot during use. The Others did not and survived longer.

My City light is still from the same purchase and has been running on the Versys now for nearly 2 years and 11,000km.
YMMV
Gigitt is offline
post #12 of 13 (permalink) Old 08-14-2015, 08:52 PM
Member

Join Date: Dec 2011
Location: California
Posts: 614
Mentioned: 0 Post(s)
If I had a light that continually burned out I'd be inclined to check my voltage regulator. While excess voltage will cause things to burn out, not sure that repeatedly losing that bulb and nothing else is a likely indicator. Still I'd check.

When mine went I replaced it with an LED bulb from ijdmtoy.com
davidg is offline
post #13 of 13 (permalink) Old 08-17-2015, 03:50 AM
Member

andrewhtf's Avatar

Join Date: Jan 2011
Location: Malaysia
Posts: 708
Mentioned: 0 Post(s)

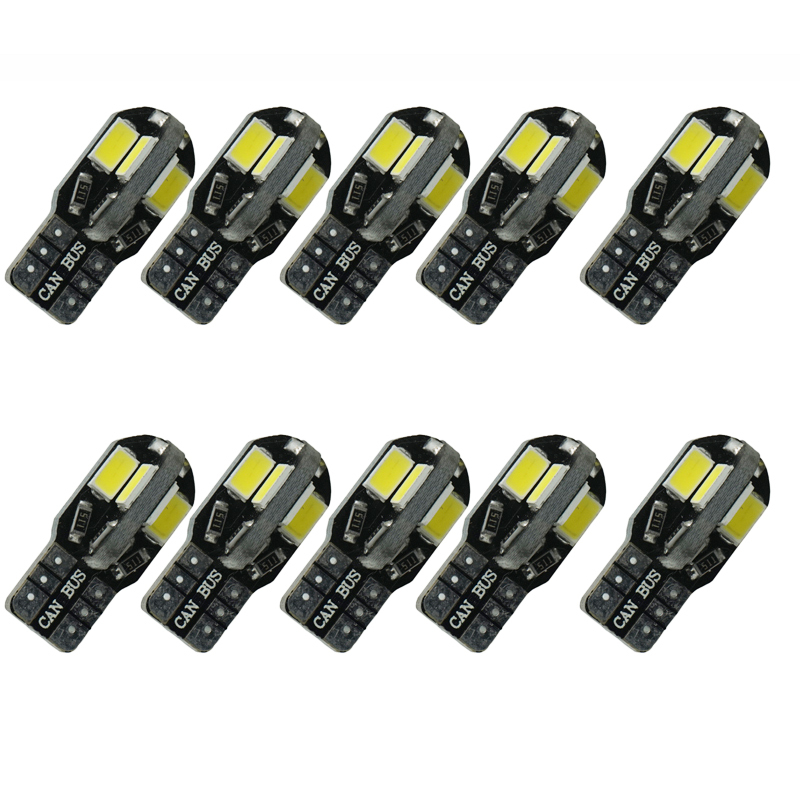

I had this on for 2 years. been good.


then i took this out from my wife's car since one of the pair spoiled due to a broken leg (that damned thin wire), and replaced the above bulb just for fun.


meanwhile wife's car gets a pair of these, less chance of having a broken legs with these.

Current : Maroon 2011.
- Fender Extender - Radiator Guard - 19mm Nissin radial master - Nissin 4-pot caliper - SS brake lines - Osram Hyper 65W both low/high beam - LED 30w aux floodlights & 3w DRLs - Rear Hugger - Givi crash guards - Yoshimura TRC Carbon - Dynojet PC5 - Scottoiler - R1 shock with Ohlins 14.2 kg/mm spring - Imitation Givi Windshield - Rear Givi rack with 24ltr Givi top box - Bosch dual tones - Z800 stock mirrors.

Up next :
- Protaper SE ATV Low - PIAA Platinum low
andrewhtf is offline
