2009 footpeg plate and hose behind

I need to know, on a '09, canadian or us model, the sequence for the hose that goes from the rear brake fluid reservoir to the rear master cylinder

I did the lowering footpeg block today, and I feel that something is off

From the outside in
The footpeg plate
The hose (from reservoir to master cylinder)
The subframe/frame
The brake light wire
Tha rear wheel

I'm not 100% sure for position of the hose
I tried to pass the hose behind the reaar subframe, but it's to thick and doesn't pass in between the rear subframe and the front frame/engine (it could pass, but I would have to sweeze the light out of it)

On the other hand, the hose looks very close to the spring of the rear shock assembly

Can someone clear the fog for me

Thank's all

LOP
Lours_Polaire is offline
Sponsored Links
Advertisement

post #2 of 13 (permalink) Old 04-04-2010, 08:39 PM
Member

MackDaddy's Avatar

Join Date: Aug 2008
Location: Lewis Center, Ohio USA
Posts: 496
Mentioned: 0 Post(s)

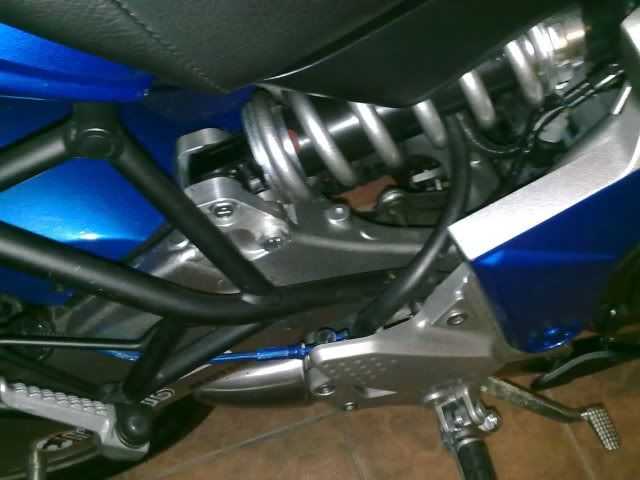

Visual aid..

MackDaddy is offline
post #3 of 13 (permalink) Old 04-04-2010, 08:56 PM
Member

Element's Avatar

Join Date: May 2009
Location: Springfield, MO
Posts: 2,241
Mentioned: 0 Post(s)
That pipe is sic! Might have to have one of those, just for the way it looks!

My Album:
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
Element is offline

post #4 of 13 (permalink) Old 04-04-2010, 08:58 PM
Member

MackDaddy's Avatar

Join Date: Aug 2008
Location: Lewis Center, Ohio USA
Posts: 496
Mentioned: 0 Post(s)


MackDaddy is offline
post #5 of 13 (permalink) Old 04-04-2010, 09:12 PM
Member

Element's Avatar

Join Date: May 2009
Location: Springfield, MO
Posts: 2,241
Mentioned: 0 Post(s)
I saw posts on the arrow thread from you, but your website says-Yoshimura TRC Carbon Fiber Exhaust 1435272
Did you change it? Sorry to jack the thread!

My Album:
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
Element is offline
post #6 of 13 (permalink) Old 04-04-2010, 11:25 PM
Super Moderator

Fastoman's Avatar

Join Date: Sep 2009
Location: Ipoh.Perak.Malaysia
Posts: 6,778
Mentioned: 6 Post(s)
Hi MackDaddy.

My is 09 Canadian Model and i did the lowering -Speeding lowering kit. No problem with the brake Hoses at all. Did you dismantle these hose's when you did your lowering. Only problem I have is with the brake pedal position. Need to bend it a bit to get the right footing.

I dont understand how you would have problems with the brake hose ,because of the lowering kit.
Fastoman is offline
post #7 of 13 (permalink) Old 04-04-2010, 11:44 PM
Super Moderator

Fastoman's Avatar

Join Date: Sep 2009
Location: Ipoh.Perak.Malaysia
Posts: 6,778
Mentioned: 6 Post(s)

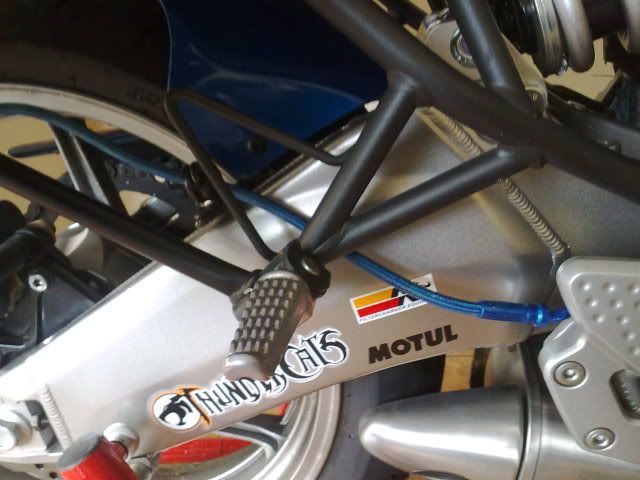

Here are some images on the brake hose; Hope it helps.




Fastoman is offline
post #8 of 13 (permalink) Old 04-05-2010, 05:07 AM
Member

MackDaddy's Avatar

Join Date: Aug 2008
Location: Lewis Center, Ohio USA
Posts: 496
Mentioned: 0 Post(s)
Yes I changed exhaust, and I'm not the OP asking the question here... I just posted a pic for him for reference.
MackDaddy is offline
post #9 of 13 (permalink) Old 04-05-2010, 08:10 AM Thread Starter
Member

Lours_Polaire's Avatar

Join Date: Dec 2009
Location: Way up north
Posts: 1,386
Mentioned: 0 Post(s)
Garage
@MacDaddy

Thank's for the fast response
+1 on that picture, seem like I put it back correctly
And you do have a darn nice can !
Thank's


@Fastoman

Read my original post, it explains my concern, not necessary my trouble
I didn't disconected the line, they did not mention that in the instruction, and seem like the brake pedal is ok for me
Only things is I will need a bit of getting use to the new position, cause I seem to land my feet on the top of the block (I position my feet to close to the bike)

Thank's for the piscture, but it was the hose from the reservoir to the master cylinder that was a problem
The line from the master cylinder to the caliper cannot be displaced
Thank's also for the trouble

And btw, nice SS line their !!!



LOP

Last edited by Lours_Polaire; 04-05-2010 at 08:20 AM.
Lours_Polaire is offline
post #10 of 13 (permalink) Old 04-05-2010, 09:11 AM
Member

MackDaddy's Avatar

Join Date: Aug 2008
Location: Lewis Center, Ohio USA
Posts: 496
Mentioned: 0 Post(s)
No problem at all LOP, and thanks for the comps on the Yoshi. It's a great exhaust.. I highly recommend!

And BTW, I've got SS lines front and rear too. They're Galfer DOT compliant "smoke covered." Love them as well, great upgrade.

Ride safe,
Jim
MackDaddy is offline
post #11 of 13 (permalink) Old 04-05-2010, 09:53 AM
Super Moderator

Fastoman's Avatar

Join Date: Sep 2009
Location: Ipoh.Perak.Malaysia
Posts: 6,778
Mentioned: 6 Post(s)
Hi LOP.

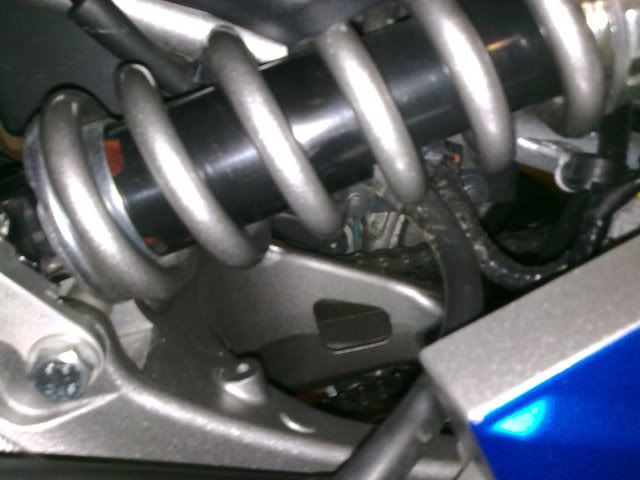

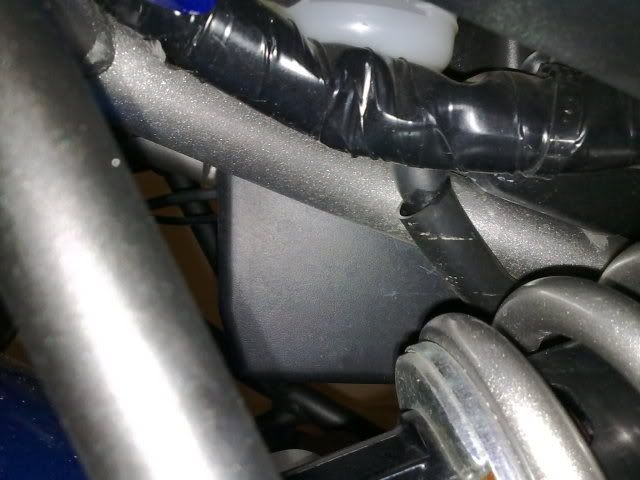

sorry If I got you wrong there, anyway did check and found the hose a little close to the spring and did a cable tie around some wire to get the distance. Some images for your reference, Hope not wrong this time.








Anyway thanks .

Fastoman is offline
post #12 of 13 (permalink) Old 04-05-2010, 02:22 PM Thread Starter
Member

Lours_Polaire's Avatar

Join Date: Dec 2009
Location: Way up north
Posts: 1,386
Mentioned: 0 Post(s)
Garage
No sweat Fastoman, no harm done

Those new pictures also depict my "concern", since in the morotwerk instruction, I couldn't see the feed line from the reservoir to the m. cylinder

I also think that maybe the picture in the motowerk instruction are from a previous year and maybe Kawi did change something

So your's and MacDaddy's will be usefull for someone else in the futur

Ciao

LOP
Lours_Polaire is offline
post #13 of 13 (permalink) Old 04-06-2010, 08:41 AM
Super Moderator

Fastoman's Avatar

Join Date: Sep 2009
Location: Ipoh.Perak.Malaysia
Posts: 6,778
Mentioned: 6 Post(s)
Hi Lop.

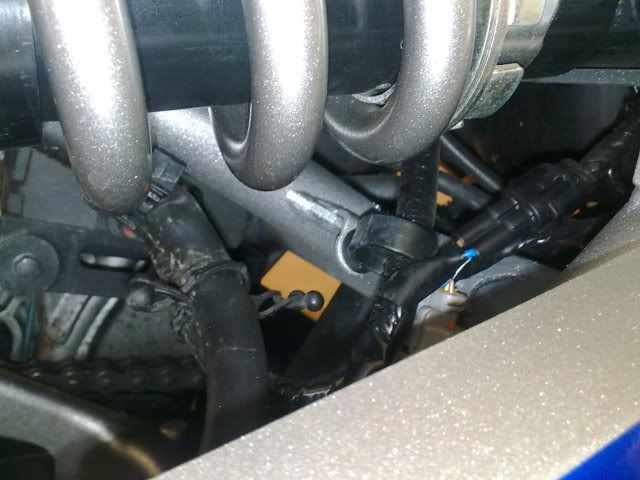

Came home from work thinking on the brake hose been too near the spring. Took a close look and saw the hose was out of its lock. There is a Clip Lock to keep the brake hose away from the spring. Take a close at yours, might have come off.Here are some pictures with the hose in secured Lock position.

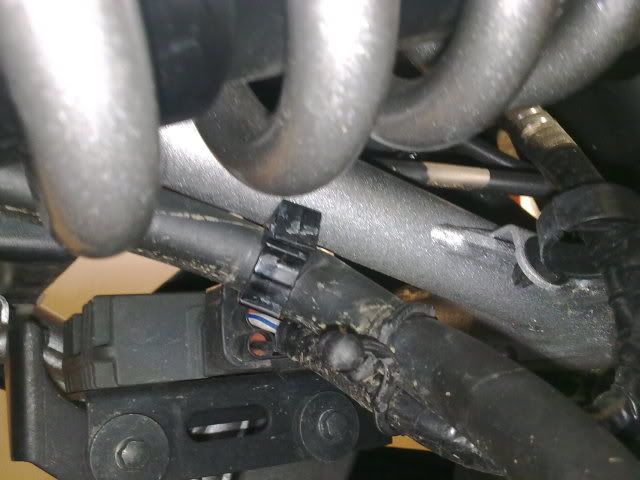

The hose in Lock position. The Lock clip is attched to the subframe.
