Turn Buckle Jack

I'll be taking a 5 day solo trip through and around Eastern Ontario next week. I was considering building a screw jack to lift the rear wheel for chain lube while away from home. I discussed my idea with me very handy neighbour, and he came up with this:

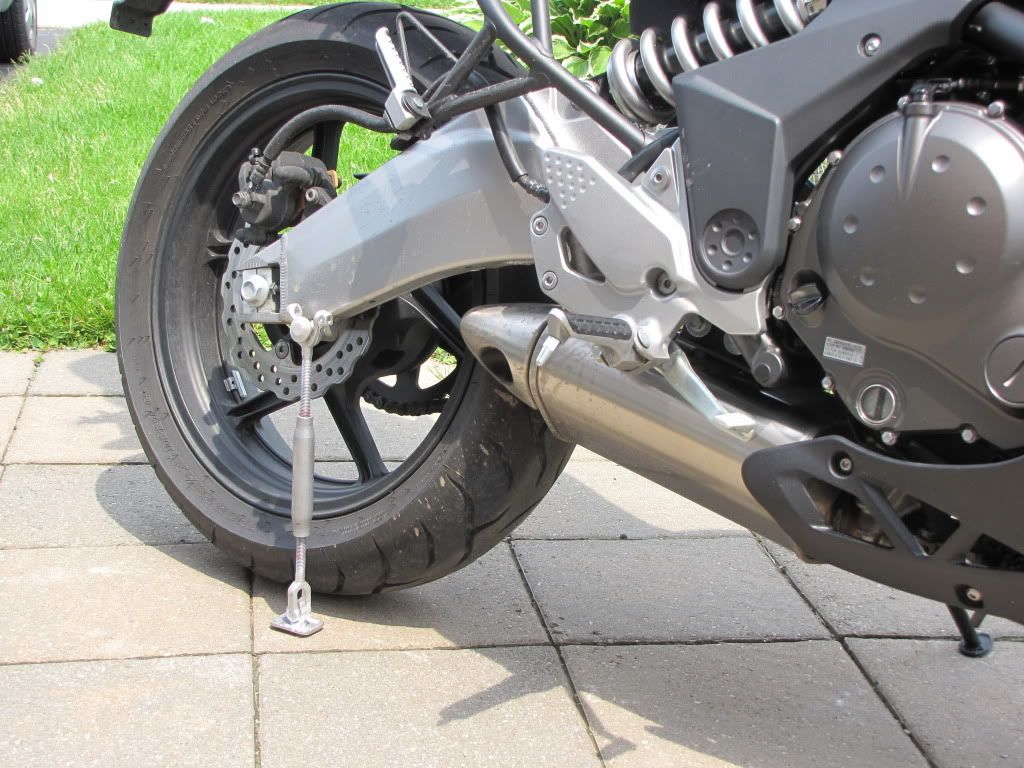

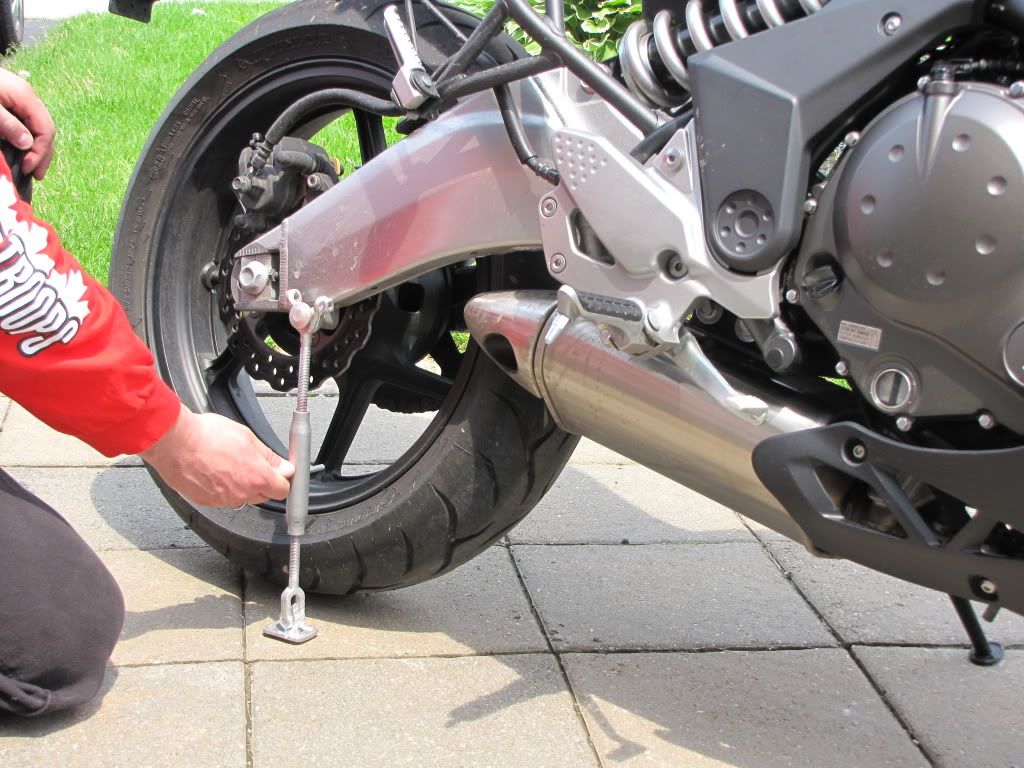

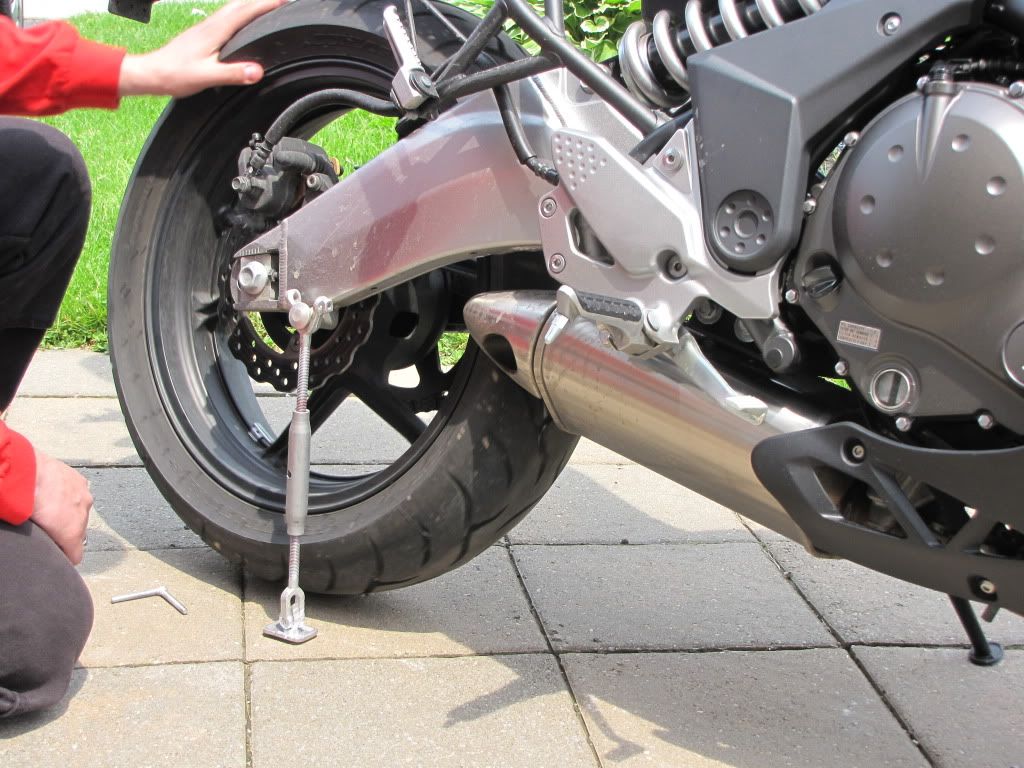

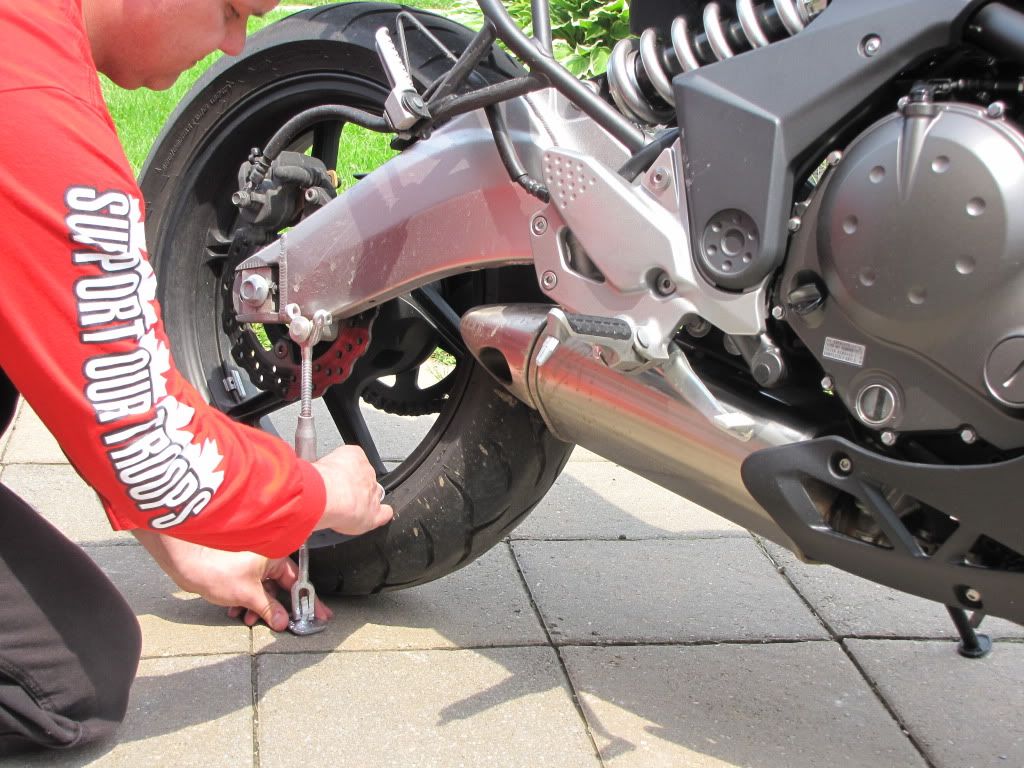

He used a heavy duty turn buckle (total cost $5.64) It is galvanized steel. The top end he opened to cradle the spool. Welded a nut at the top to store the key when not in use. And the "foot" is from the brake peddle from a buddy's bike that got dropped and bent last year. Creative stuff, eh? Compressed for storage it is about 10 inches long.

Always trust your cape.
ATYC is offline
Sponsored Links
Advertisement

post #2 of 27 (permalink) Old 06-05-2011, 07:05 AM
Member

Capn Kirk's Avatar

Join Date: Apr 2010
Location: Virginia USA
Posts: 4,740
Mentioned: 0 Post(s)
Whatever works! If I ever get the need for a portable jack, I like this one that Weljo posted... http://www.packjack.ca/

Looks much easier although more expensive.

Capn Kirk is offline
post #3 of 27 (permalink) Old 06-05-2011, 07:19 AM
Member

stagehand38's Avatar

Join Date: Oct 2009
Location: Clinton Township, Michigan
Posts: 1,172
Mentioned: 0 Post(s)
Just my humble opinion but...I think your chain will survive a week without being lubed.
clever idea though.
Be safe.
peace.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
Aerodynamically sound since 1959. So says the good folk @ Lockheed, Atlanta GA.
The KLE 650 VERSYS: It can't replace the Love of a good woman but...
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.

My Bike is my solitude amongst the multitudes

To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.

"Wounds heal, chicks dig scars...Glory, lasts forever!"
TRUE PATRIOTS QUESTION EVERYTHING
stagehand38 is offline

post #4 of 27 (permalink) Old 06-05-2011, 07:40 AM
Member

miblue's Avatar

Join Date: Oct 2010
Location: SW Michigan USA
Posts: 246
Mentioned: 0 Post(s)
motorcycle travel jack.jpg

Saw this one on a thread a while back. Liked the simpleness of it.

.
Life without GOD is like an unsharpened pencil...........
It has NO point
miblue is offline
post #5 of 27 (permalink) Old 06-05-2011, 08:07 AM
Member

Hardware's Avatar

Join Date: Nov 2009
Posts: 1,229
Mentioned: 0 Post(s)
I think the OPís Turn-Buckle unit is the best design Iíve seen. It has a great range of adjustment and a good foot for a less-than-perfect road surface and the screw-lift ought to make for a very easy one-man operation without the chance of knocking the bike over (just be sure to place it at an angle so that the bike doesnít want to move forward & roll up the side stand).
.

~~ Live Like You're Dying ~~
Hardware is offline
post #6 of 27 (permalink) Old 06-05-2011, 08:18 AM
Member

Join Date: Jan 2010
Location: S.W. Wisconsin
Posts: 628
Mentioned: 0 Post(s)
Agreed.

And I think you could adjust it first. Then tilt the scoot and have it slide into place. Hence no need to crank it up under load.

But I also like the idea of the Red one. Especially if you put a loop or whatever to hook to the spool and use as stated above.

Also the Packjack idea can be made for less than ten bucks. (not up to date on the price of alum). DAMHIK

Ride em if ya got em!
tinner is offline
post #7 of 27 (permalink) Old 06-05-2011, 09:15 AM
Member

weljo2001's Avatar

Join Date: Jan 2010
Location: Norwalk CA
Posts: 15,511
Mentioned: 6 Post(s)
Garage
Quote:
Originally Posted by Capn Kirk View Post
Whatever works! If I ever get the need for a portable jack, I like this one that Weljo posted... http://www.packjack.ca/

Looks much easier although more expensive.


If anyone decides to get the packjack. Don't order on-line.Call them to order the adjustable model they don't have on the web-site. The versys is a little to tall for the normal packjack to work correctly.

2009 Blue Versys.
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
Sold
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.

My Farkles...
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
...
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.

My Video Channel
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.

My Photos...
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.


I'm not a Gynecologist. "But I'll Take A Look"

Everyone has a plan 'till they get punched in the mouth...
Mike Tyson

"Ya'll can go to hell, I'm goin' to Texas!"...Davey Crockett
weljo2001 is offline
post #8 of 27 (permalink) Old 06-05-2011, 11:50 AM
Member

blackberry's Avatar

Join Date: Apr 2010
Location: out behind the shed
Posts: 169
Mentioned: 0 Post(s)
Making one of these is on my long to-do list. I think I saved about 20 pictures of other peoples work and will probably use a little bit of each to come up with my own.
blackberry is offline
post #9 of 27 (permalink) Old 06-05-2011, 12:34 PM
Member

Join Date: Dec 2008
Location: Ottawa, Ontario
Posts: 687
Mentioned: 0 Post(s)
I made one out of wood, a piece of 1x2 birch I had kicking around (I'm a carpenter). If I could figure out how to upload picture I could show you. Oh well.

Cool unit ATYC. You'll have a great trip in NE Ontario. The roads around Barry's Bay are a hoot.
Mt. Versuvius is offline
post #10 of 27 (permalink) Old 06-05-2011, 12:52 PM
Member

miblue's Avatar

Join Date: Oct 2010
Location: SW Michigan USA
Posts: 246
Mentioned: 0 Post(s)
motorcycle travel jack.jpg

I didn't mention earlier that this one compacts small enough to go under the seat, which for me is a major plus.

.
Life without GOD is like an unsharpened pencil...........
It has NO point
miblue is offline
post #11 of 27 (permalink) Old 06-05-2011, 04:35 PM
Member

Stumpifier's Avatar

Join Date: Nov 2010
Location: NE Ohio
Posts: 105
Mentioned: 0 Post(s)
I like that a lot. Cheap, easy, and effective. Time to go get my welder out.....

1982 Honda CB450SC Nighthawk
2009 Green Versys
Stumpifier is offline
post #12 of 27 (permalink) Old 06-06-2011, 11:37 AM
Member

Ogre_fl's Avatar

Join Date: Apr 2011
Location: Cook Bayou, FL
Posts: 76
Mentioned: 0 Post(s)
Quote:
Originally Posted by weljo2001 View Post
If anyone decides to get the packjack. Don't order on-line.Call them to order the adjustable model they don't have on the web-site. The versys is a little to tall for the normal packjack to work correctly.
I take it you have tried both?

I am not sure I understand "too tall" with a 17" rim and the spool under the swing arm.
Is its because of the excessive slop in the side stand?
Ogre_fl is offline
post #13 of 27 (permalink) Old 06-06-2011, 11:44 AM
Member

weljo2001's Avatar

Join Date: Jan 2010
Location: Norwalk CA
Posts: 15,511
Mentioned: 6 Post(s)
Garage
Quote:
Originally Posted by Ogre_fl View Post
I take it you have tried both?

I am not sure I understand "too tall" with a 17" rim and the spool under the swing arm.
Is its because of the excessive slop in the side stand?
That could be it. My bike leaned way over due to the fact where my kickstand bolts on that area was bent.

2009 Blue Versys.
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
Sold
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.

My Farkles...
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
...
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.

My Video Channel
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.

My Photos...
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.


I'm not a Gynecologist. "But I'll Take A Look"

Everyone has a plan 'till they get punched in the mouth...
Mike Tyson

"Ya'll can go to hell, I'm goin' to Texas!"...Davey Crockett
weljo2001 is offline
post #14 of 27 (permalink) Old 06-06-2011, 11:44 AM
Member

Join Date: Jun 2010
Location: CT
Posts: 68
Mentioned: 0 Post(s)
Maybe the amount of sag in the shock? Mine moves quite a bit initially with pretty light pressure to the seat.
dirtha is offline
post #15 of 27 (permalink) Old 06-06-2011, 11:49 AM
Member

cmoreride's Avatar

Join Date: Oct 2010
Posts: 875
Mentioned: 0 Post(s)
If you have not totaly decided on bringing a device to lift the rear wheel.
And you have a riding partner.
.
Have them stand on the left side and pull to lean the bike on to the side stand
and you spin rear wheel while you lube the chain.
.
There is also the "good enough"
spray, roll, spray, roll, spray, manual method.

"Respect the Ride if you don't you Won't"
"A man's got to know his limitations"

Last edited by cmoreride; 06-06-2011 at 01:27 PM.
cmoreride is offline
post #16 of 27 (permalink) Old 06-06-2011, 12:03 PM
Member

Ogre_fl's Avatar

Join Date: Apr 2011
Location: Cook Bayou, FL
Posts: 76
Mentioned: 0 Post(s)
Quote:
Originally Posted by weljo2001 View Post
That could be it. My bike leaned way over due to the fact where my kickstand bolts on that area was bent.
Got a picture of the "adjustable" version by any chance?
Ogre_fl is offline
post #17 of 27 (permalink) Old 06-06-2011, 12:27 PM
Member

weljo2001's Avatar

Join Date: Jan 2010
Location: Norwalk CA
Posts: 15,511
Mentioned: 6 Post(s)
Garage
Quote:
Originally Posted by Ogre_fl View Post
Got a picture of the "adjustable" version by any chance?
Nope sold both of them. I was heading back to puerto rico and wouldn't have any need for them and my best friends boss and a buddy of his wanted them for a trip they were going on. I will be ordering another one though.

2009 Blue Versys.
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
Sold
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.

My Farkles...
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
...
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.

My Video Channel
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.

My Photos...
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.


I'm not a Gynecologist. "But I'll Take A Look"

Everyone has a plan 'till they get punched in the mouth...
Mike Tyson

"Ya'll can go to hell, I'm goin' to Texas!"...Davey Crockett
weljo2001 is offline
post #18 of 27 (permalink) Old 06-06-2011, 12:33 PM
Member

Stud Muffin's Avatar

Join Date: Sep 2010
Location: Mantua, New Jersey
Posts: 873
Mentioned: 0 Post(s)
Quote:
Originally Posted by cmoreride View Post
I you have not totaly decided on bringing a device to lift the rear wheel.
.
And you have a riding partner.
Have them stand on the left side and pull to lean the bike on to the side stand
and you spin rear wheel while you lube the chain.
.
There is also the good enough spray, roll, spray, roll, spray, manual method.
Roll, spray, roll, that's me. I'm halfway down the driveway before I get it all...
Stud Muffin is offline
post #19 of 27 (permalink) Old 06-06-2011, 01:26 PM
Member

cmoreride's Avatar

Join Date: Oct 2010
Posts: 875
Mentioned: 0 Post(s)
I'd assume most use a lift stand @ home.
For me
.
@ home: lift stand
.
on the road: buddy lift/lean or
spray, roll, spray, roll, spray
.
I'm not carrying another metal item that
adds weight & takes up space and
that's not a necessity.


Bye the Way cool screen name ->
Quote:
Originally Posted by Stud Muffin View Post
Roll, spray, roll, that's me. I'm halfway down the driveway before I get it all...

"Respect the Ride if you don't you Won't"
"A man's got to know his limitations"

Last edited by cmoreride; 06-06-2011 at 02:39 PM.
cmoreride is offline
post #20 of 27 (permalink) Old 06-06-2011, 01:58 PM
Member

Join Date: Jun 2008
Location: Wisconsin, 25 miles north of Milwaukee
Posts: 1,567
Mentioned: 0 Post(s)
I just use a piece of pvc pipe, cut to the correct length. It's very light weight and it works. I store it in my side bag.

Before I tilt the bike over, I lock the steering lock, and I put a rubber band on the front break lever (holding the brake on), to be sure the bike does not roll off the side stand while I'm lubing the chain.

And if I'm feeling OCD that day, I will find a piece of scrap paper or tourist brochure and put it between the chain and the muffler before spraying the chain. The muffler will stay cleaner that way, and it keeps the vaporizing fumes from the lube hitting the hot muffler out of my eyes and nose.
trialsguy is offline
